TKS E-Cube R100P-112
Cabinet ESS
Outdoor IP54 cabinet ESS with 112 kWh solid-state 314 Ah battery packs and hybrid inverter pairing up to multi-unit parallel plants.
- Capacity
- 112 kWh
- Power
- 50 kW

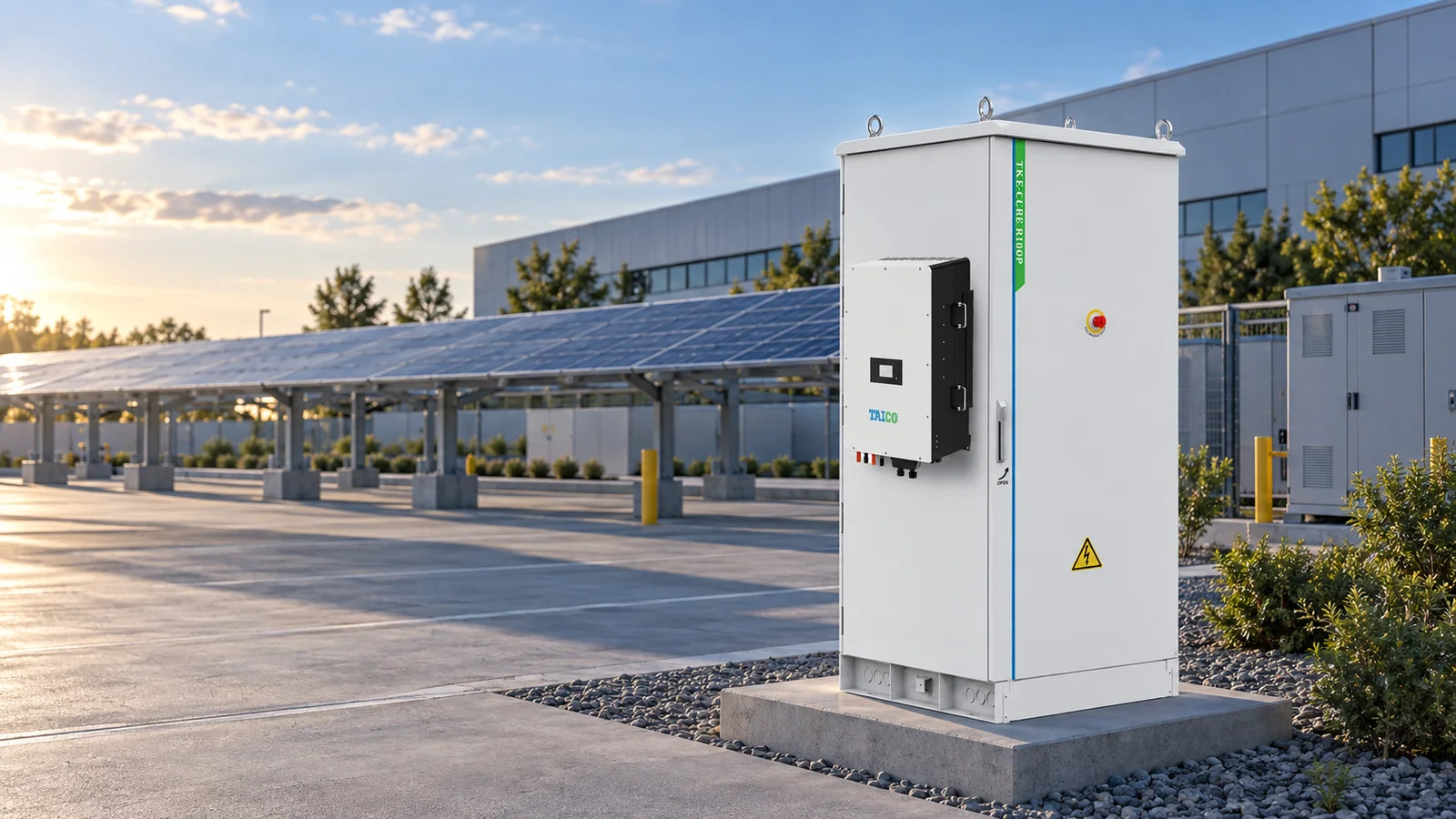

AI-generated illustrative application context, not a customer project.
System at a glance
The published TKS E-Cube R100P-112 platform
Outdoor IP54 cabinet ESS with 112 kWh solid-state 314 Ah battery packs and hybrid inverter pairing up to multi-unit parallel plants.
- Capacity
- 112 kWh
- Rated power
- 50 kW
- Protection
- IP54
- Catalog
- V1.9 / P21
Use cases
- Commercial energy storage
- PV-storage systems
- Distributed storage plants
Capabilities
- +DC circuit safety protection and multi-level battery protection
- +Smart BMS with 16S passive equalization BMU
- +Plug-and-play modular design for transport and install

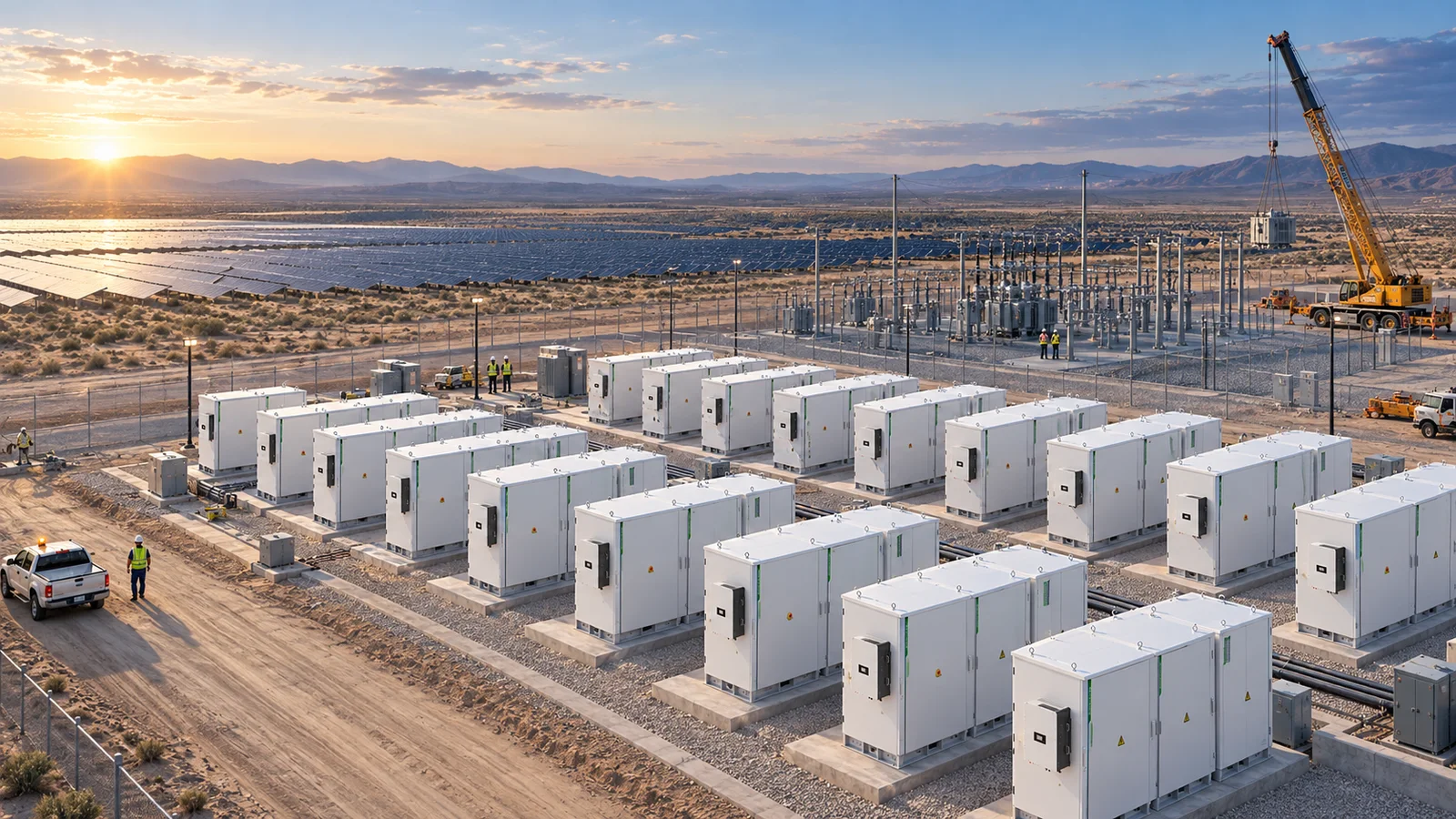

Deployment context
Designed for deployment at scale
From an individual product platform to a coordinated site layout, system quantity and electrical architecture remain project-specific.
Catalog specification
Technical details
Published from TAICO C&I ESS Brochure V1.9, page 21.
| Battery capacity | 112 kWh |
|---|---|
| Rated / output power | 50 kW |
| Rated voltage | System nominal 358.4 V |
| Cell type | Solid-state 314 Ah |
| Cycle life / duty | ≥8000 cycles · 95% DoD |
| Working temperature | Charge 0–55 °C / discharge −20–55 °C |
| Pack capacity and configuration | 16.076 kWh / 1P16S |
| Pack quantity | 7 |
| Battery voltage range | 302.4–408.8 V |
| Charge/discharge rate | ≤0.5C |
| Rated AC output power | 50 kW class hybrid inverter pairing |
| PV string input | Max DC input 65 kW · MPPT 150–850 V |
| Grid type | Three phase 220/380 or 230/400 Vac |
| Optional inverter brands | TAICO / DEYE / GROWATT / SOLIS |
| Parallel operation | Up to 10 units |
| Anti-corrosion level | Standard C3, customizable to C4 |
| Size | 708 × 2303 × 1200 mm |
| Weight | Catalog cabinet system |
| Protection level | IP54 |
