TKS E-Cube A1000

Containerized Hybrid ESS

20 ft hybrid energy storage container rated 500 kW / 1028 kWh for industrial storage, microgrids, and off-grid supply.

Capacity: 1028 kWh
Power: 500 kW

Request configuration Estimate backup needs View specifications

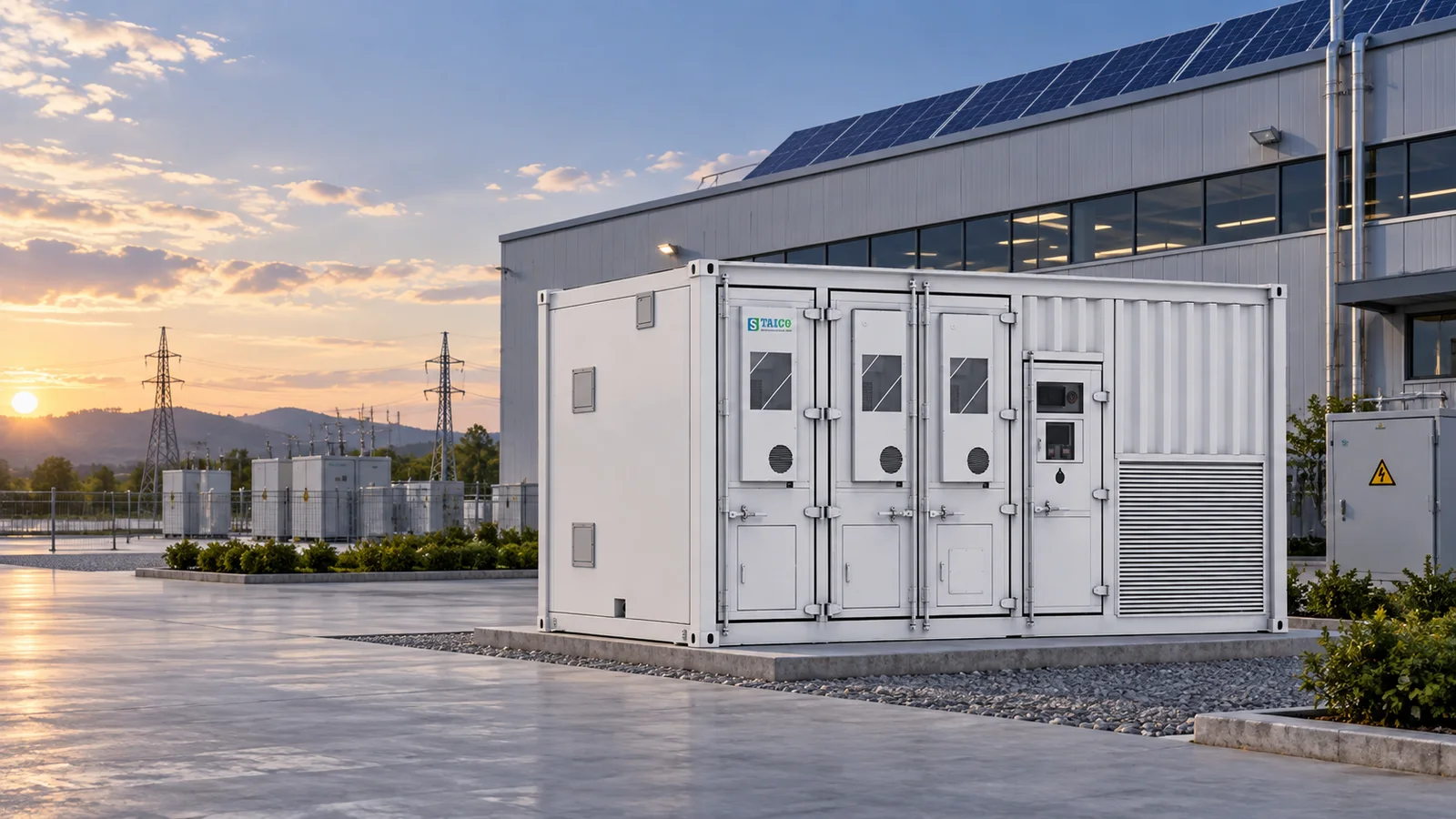

AI-generated illustrative application context, not a customer project.

System at a glance

The published TKS E-Cube A1000 platform

20 ft hybrid energy storage container rated 500 kW / 1028 kWh for industrial storage, microgrids, and off-grid supply.

Capacity: 1028 kWh
Rated power: 500 kW
Protection: IP54
Catalog: V1.9 / P5

Use cases

Industrial and commercial energy storage
Microgrids
Off-grid power supply

Capabilities

+Integrated battery, PCS, EMS, temperature control, and fire protection
+On-grid and off-grid dual-mode operation
+Intelligent on/off-grid switching with isolated transformer

TKS E-Cube A1000 from the TAICO C&I ESS product catalog — Brochure V1.9 · page 5 · catalog product image

Deployment context

Designed for deployment at scale

From an individual product platform to a coordinated site layout, system quantity and electrical architecture remain project-specific.

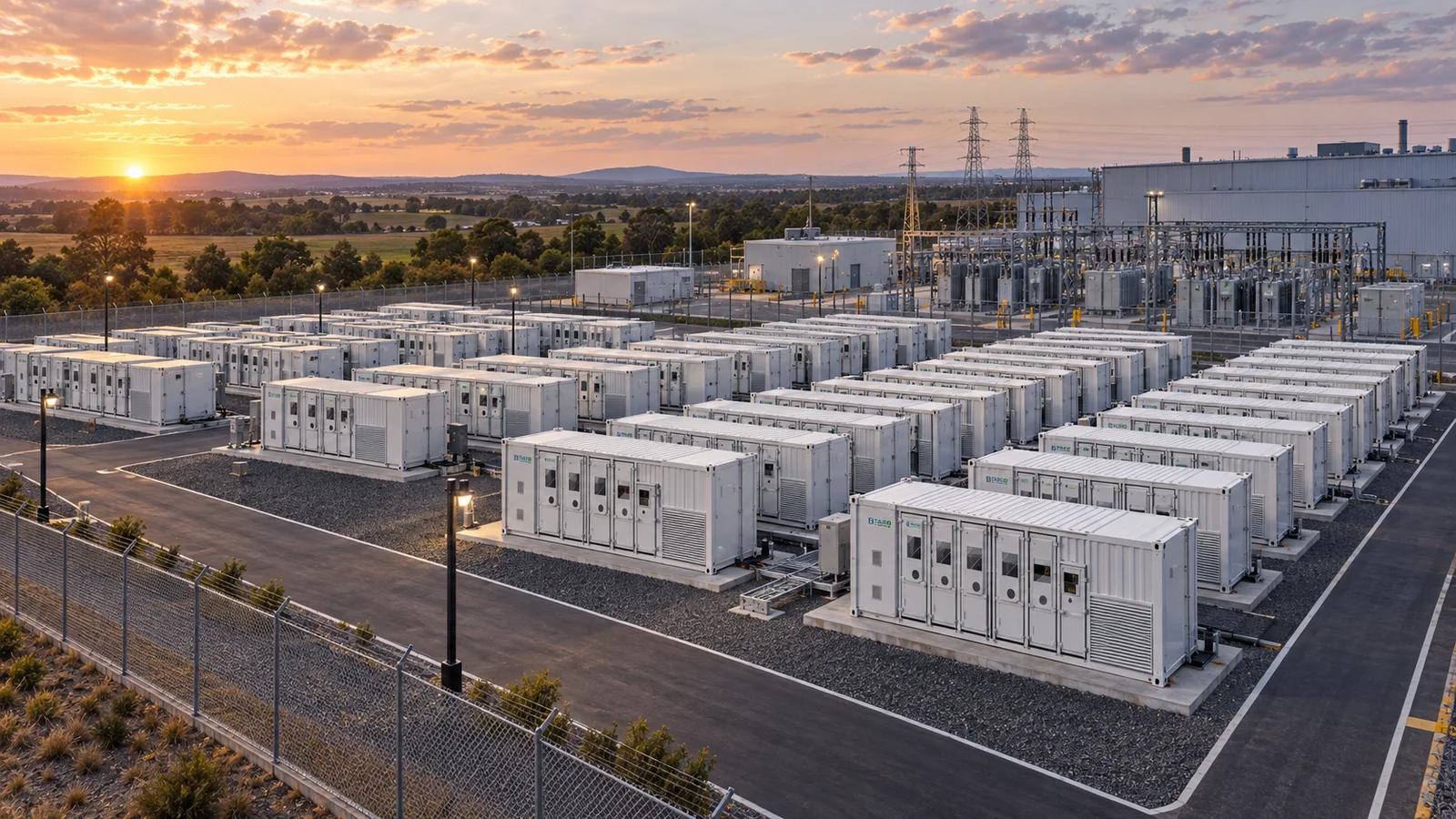

Illustrative aerial view of a utility-scale TKS E-Cube A1000 deployment — AI-generated illustrative deployment context, not a customer project or final site design.

Catalog specification

Technical details

Published from TAICO C&I ESS Brochure V1.9, page 5.

Battery capacity	1028 kWh
Rated / output power	500 kW
Rated voltage	AC 400 V
Cell type	LFP 314 Ah
Cycle life / duty	Catalog pack 16.077 kWh / 1P16S · ≤0.5C
Working temperature	−30 °C to 55 °C (derating over 40 °C)
Format	Standard 20 ft high-cube container
Battery capacity / packs	1028 kWh / 4×16
Max. PV input power	8 × 120 kW
Rated current	722 A
Hybrid switching time	<20 ms
THDi / power factor / THDu	<3% / >0.99 / <3% (linear load)
Rated frequency	50/60 Hz
Cooling	Smart air cooling
Size	6058 × 2438 × 2896 mm
Weight	<15 t
Protection level	IP54

Compatibility reference

Battery and inverter ecosystem

A published reference of TAICO battery-cell partners and compatible inverter brands. Final cell, inverter, and certification scope must be confirmed for each project.

TAICO battery cell strategic partners and compatible inverter brands — Partner and inverter compatibility reference supplied by TAICO; confirm final component selection for each project.
