TKMPPT-12
Photovoltaic MPPT Controller
External PV MPPT controller delivering up to 120 kW rated output for DC-coupled ESS architectures.
- Power
- 120 kW

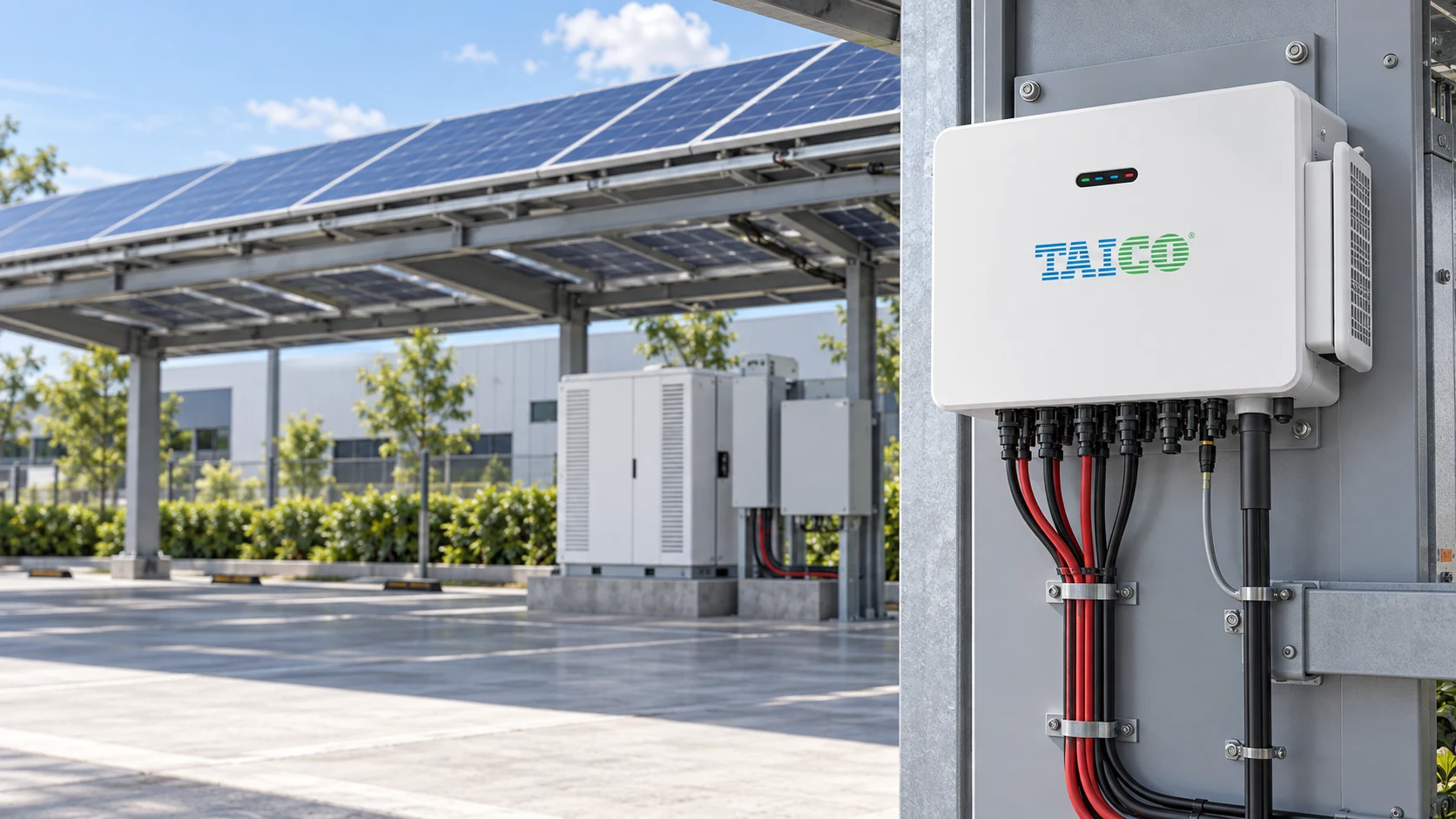

AI-generated TKMPPT-12 application context · not a customer project
System at a glance
The published TKMPPT-12 platform
External PV MPPT controller delivering up to 120 kW rated output for DC-coupled ESS architectures.
- Rated power
- 120 kW
- Protection
- IP65
- Catalog
- V1.9 / P33
Use cases
- PV DC coupling
- Off-grid PV-storage systems
- Hybrid ESS containers
Capabilities
- +High-efficiency DC PV generation path into ESS
- +Outdoor IP65 protection
- +Local MPPT boost conversion reduces long PV cable clutter
Catalog specification
Technical details
Published from TAICO C&I ESS Brochure V1.9, page 33.
| Battery capacity | N/A |
|---|---|
| Rated / output power | 120 kW |
| Rated voltage | Default 716.8 V DC bus (adjustable) |
| Cell type | N/A · PV conversion stage |
| Cycle life / duty | N/A |
| Working temperature | −30 °C to 55 °C |
| Family | TKMPPT-6 / TKMPPT-8 / TKMPPT-12 |
| Maximum PV array voltage | 900 V |
| MPPT voltage range | 200–900 V |
| Full-load MPPT voltage range | 560–900 V |
| Number of MPPTs / branches | 4 / 12 |
| Rated output power | 120 kW |
| Rated / max output current | 168 A / 240 A |
| European efficiency | 99.4% |
| Communication | RS485 |
| Power supply | Self-powered (no night consumption) |
| Size | 630 × 460 × 260 mm |
| Weight | 30 kg |
| Protection level | IP65 |

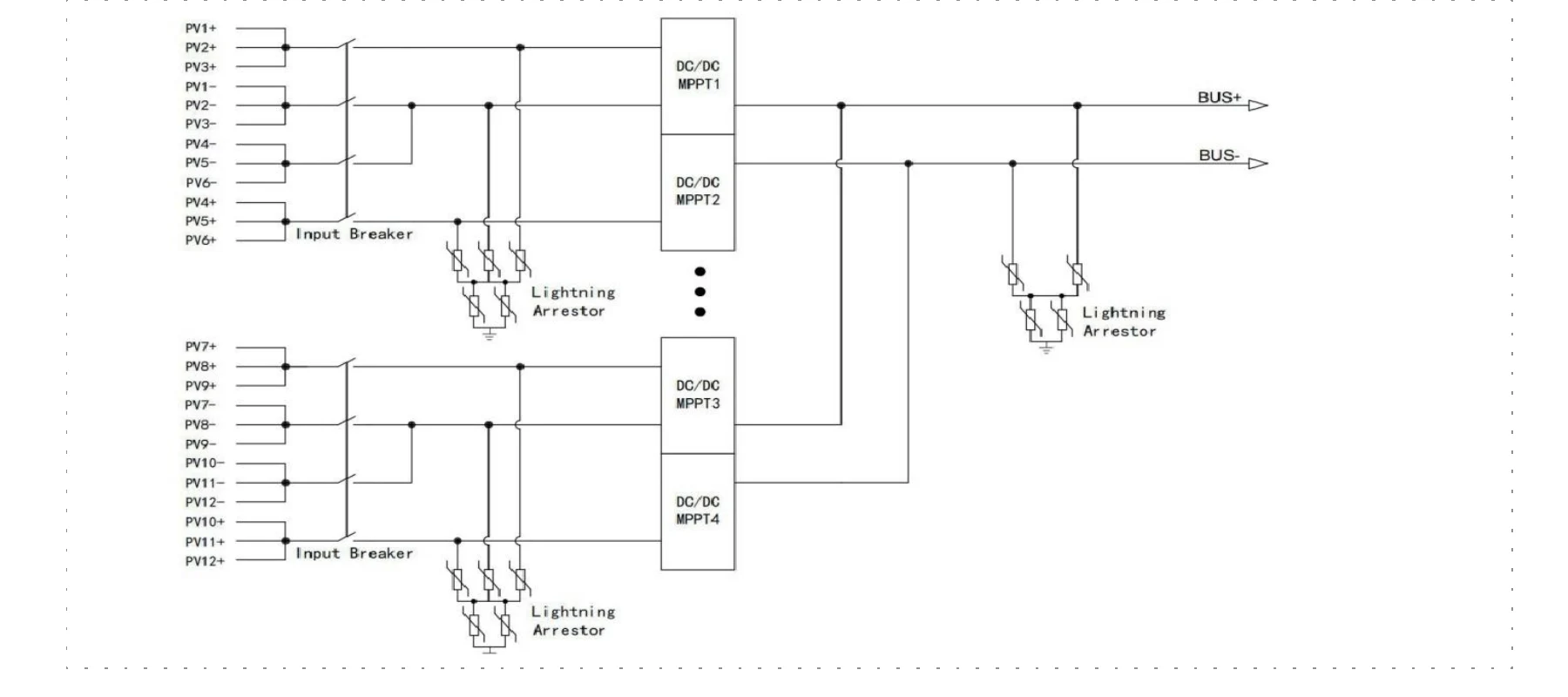

Catalog technical diagrams
System reference
These brochure diagrams show the published system reference. Final configuration must be confirmed for the project.
