TKS E-Cube A2000
Containerized Hybrid ESS
40 ft hybrid ESS container rated 1000 kW / 2058 kWh for multi-megawatt-class commercial and industrial projects.
- Capacity
- 2058 kWh
- Power
- 1000 kW

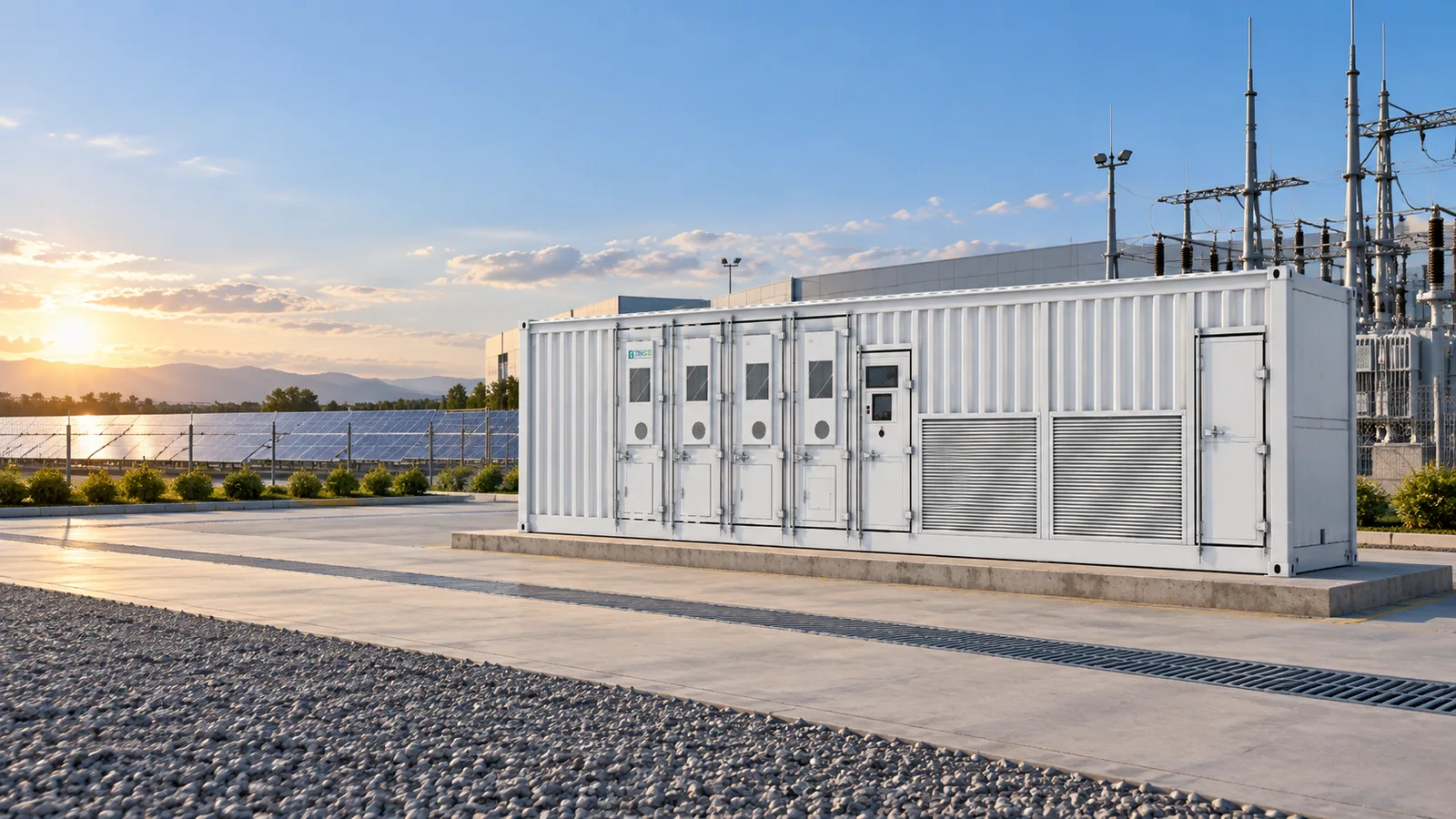

AI-generated illustrative application context, not a customer project.
System at a glance
The published TKS E-Cube A2000 platform
40 ft hybrid ESS container rated 1000 kW / 2058 kWh for multi-megawatt-class commercial and industrial projects.
- Capacity
- 2058 kWh
- Rated power
- 1000 kW
- Protection
- IP54
- Catalog
- V1.9 / P7
Use cases
- Industrial and commercial energy storage
- Microgrids
- Off-grid power supply
Capabilities
- +Three-electricity integration in one container
- +On-grid and off-grid dual-mode hybrid ESS
- +PV DC coupling through external MPPT

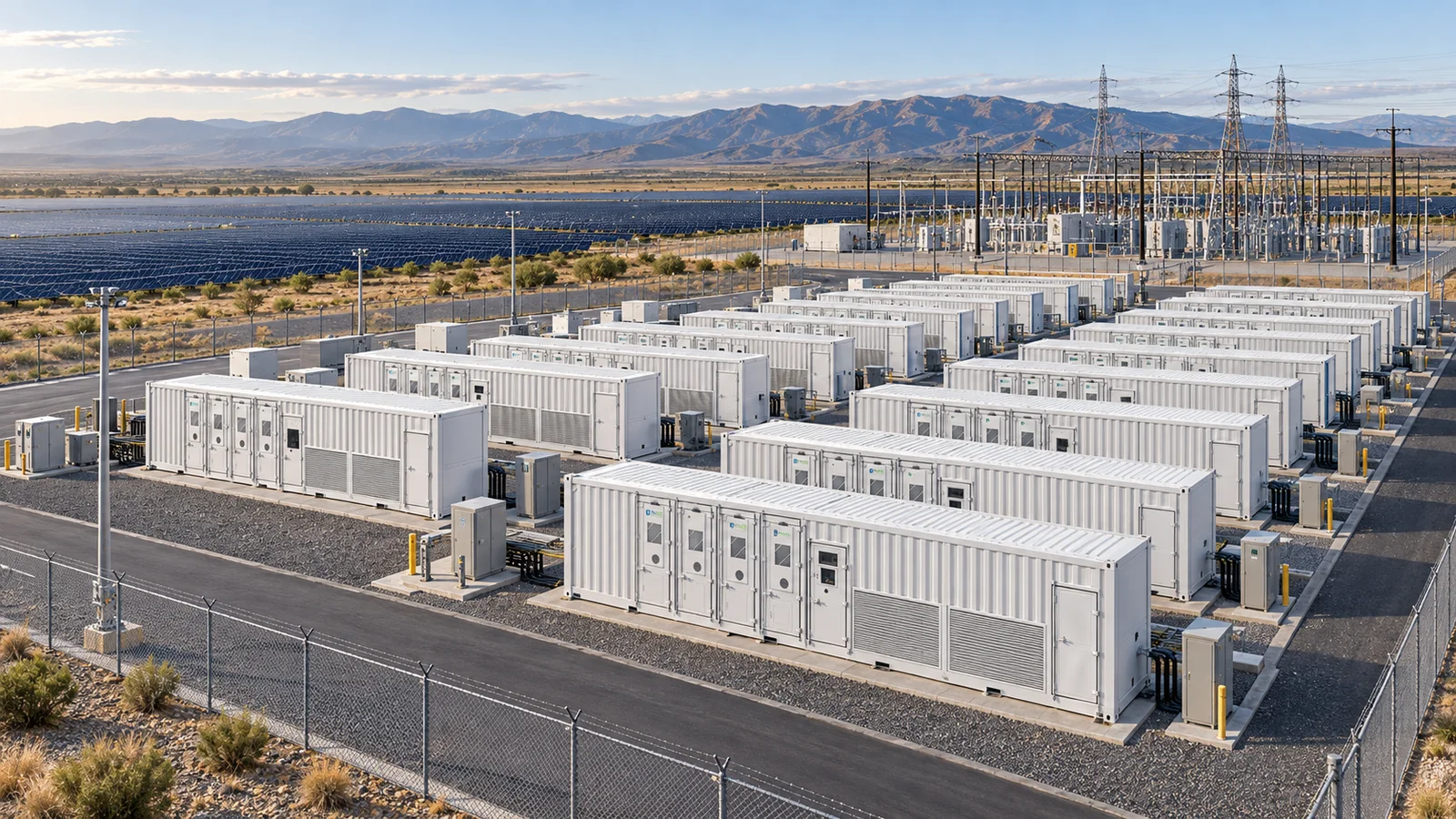

Deployment context
Designed for deployment at scale
From an individual product platform to a coordinated site layout, system quantity and electrical architecture remain project-specific.
Catalog specification
Technical details
Published from TAICO C&I ESS Brochure V1.9, page 7.
| Battery capacity | 2058 kWh |
|---|---|
| Rated / output power | 1000 kW |
| Rated voltage | AC 400 V |
| Cell type | LFP 314 Ah |
| Cycle life / duty | Catalog pack 16.077 kWh / 1P16S · ≤0.5C |
| Working temperature | −30 °C to 55 °C (derating over 40 °C) |
| Format | Standard 40 ft high-cube container |
| Battery capacity / packs | 2058 kWh / 8×16 |
| Max. PV input power | 16 × 120 kW |
| Rated current | 1444 A |
| Hybrid switching time | <20 ms |
| THDi / power factor / THDu | <3% / >0.99 / <3% (linear load) |
| Rated frequency | 50/60 Hz |
| Cooling | Smart air cooling |
| Size | 12192 × 2438 × 2896 mm |
| Weight | <26 t |
| Protection level | IP54 |
Compatibility reference
Battery and inverter ecosystem
A published reference of TAICO battery-cell partners and compatible inverter brands. Final cell, inverter, and certification scope must be confirmed for each project.
