TKS E-Cube A2570
Containerized BESS
2570 kWh containerized battery energy storage system with multi-cluster architecture and optional PV MPPT branches.
- Capacity
- 2570 kWh
- Power
- 1285 kW

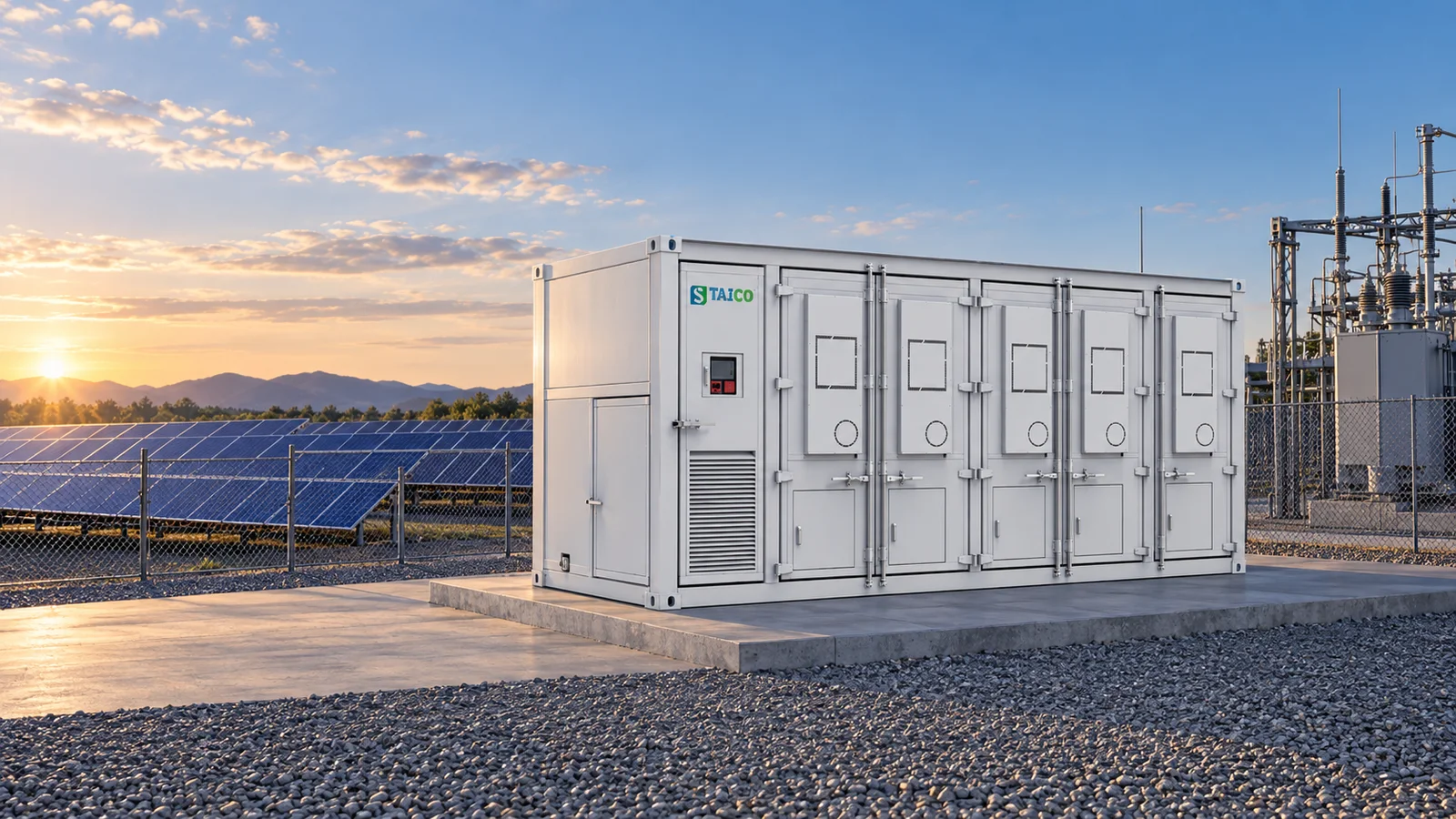

AI-generated illustrative application context, not a customer project.
System at a glance
The published TKS E-Cube A2570 platform
2570 kWh containerized battery energy storage system with multi-cluster architecture and optional PV MPPT branches.
- Capacity
- 2570 kWh
- Rated power
- 1285 kW
- Protection
- Container IP54
- Catalog
- V1.9 / P9
Use cases
- Industrial and commercial energy storage
- Microgrids
- Off-grid power supply
Capabilities
- +Refined thermal management for longer cell lifespan
- +Photovoltaic DC coupling with external MPPT for higher charging efficiency
- +Integrated high-voltage box and PV access ports
Deployment context
Designed for deployment at scale
From an individual product platform to a coordinated site layout, system quantity and electrical architecture remain project-specific.
Catalog specification
Technical details
Published from TAICO C&I ESS Brochure V1.9, page 9.
| Battery capacity | 2570 kWh |
|---|---|
| Rated / output power | 1285 kW |
| Rated voltage | DC 819.2 V nominal |
| Cell type | LFP 314 Ah |
| Cycle life / duty | 8000 cycles (0.5P, 25±2 °C, @70% SOH) |
| Working temperature | −30 °C to 55 °C (derating over 40 °C) |
| Battery capacity / packs | 2570 kWh / 10×16 |
| Pack capacity and configuration | 16.077 kWh / 1P16S |
| Charge/discharge ratio | ≤0.5C |
| Depth of discharge | 95% |
| Battery voltage range | 716.8–921.6 V |
| Rated power | 1285 kW |
| PV branches | 20 channels (optional 2 MPPT controllers per cluster) |
| Cooling / noise | Air cooling / <70 dB |
| Related certificates | UN38.3 / transportation hazard report / classification society certification |
| Size | 6058 × 2438 × 2896 mm |
| Weight | <26 t |
| Protection level | Container IP54 |
Compatibility reference
Battery and inverter ecosystem
A published reference of TAICO battery-cell partners and compatible inverter brands. Final cell, inverter, and certification scope must be confirmed for each project.
