TKS E-Cube A1500
Containerized Hybrid ESS
Hybrid ESS container available as 500 kW / 1543 kWh (20 ft) or 1000 kW / 1543 kWh (40 ft) configurations.
- Capacity
- 1543 kWh
- Power
- 500 kW

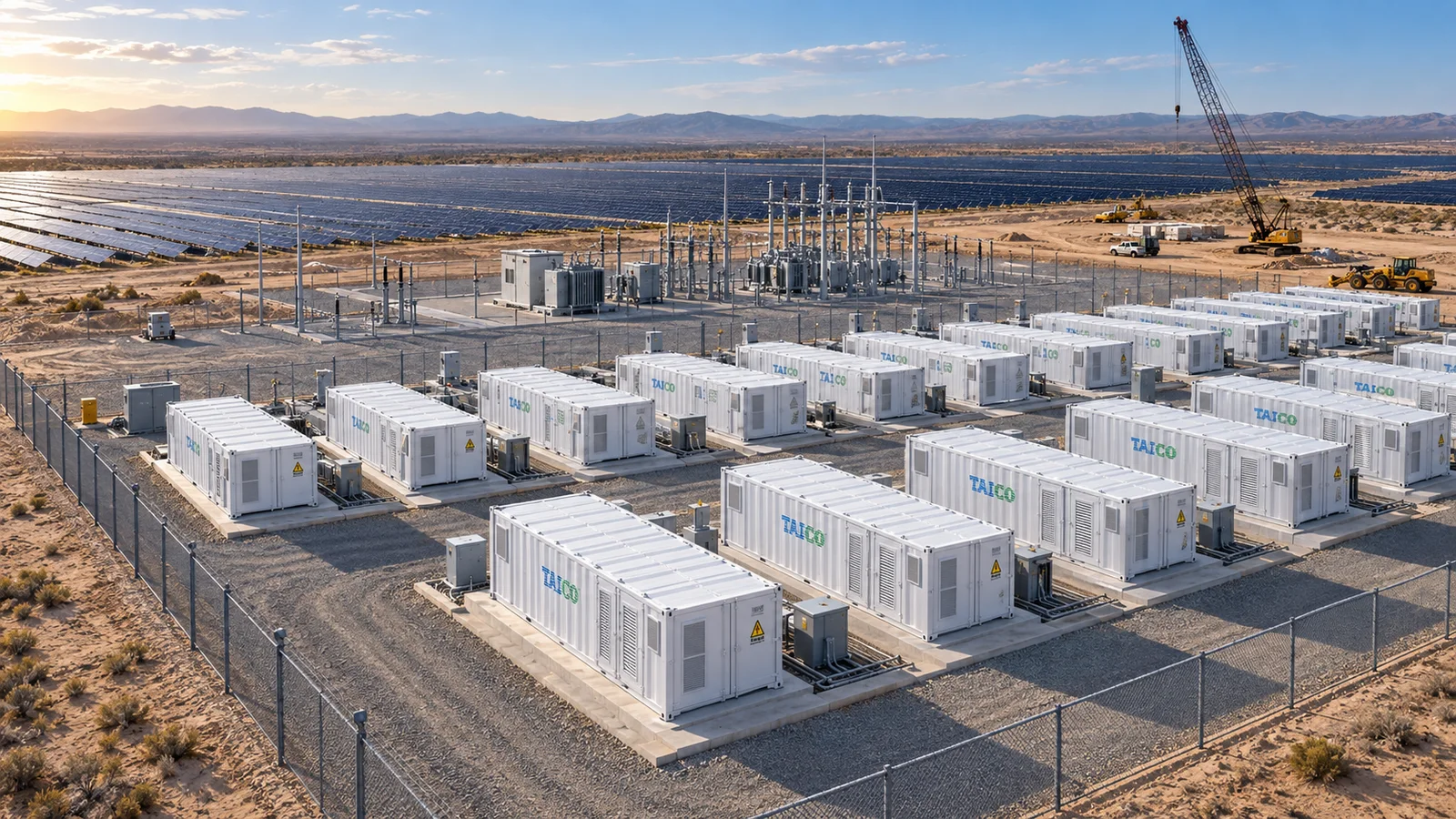

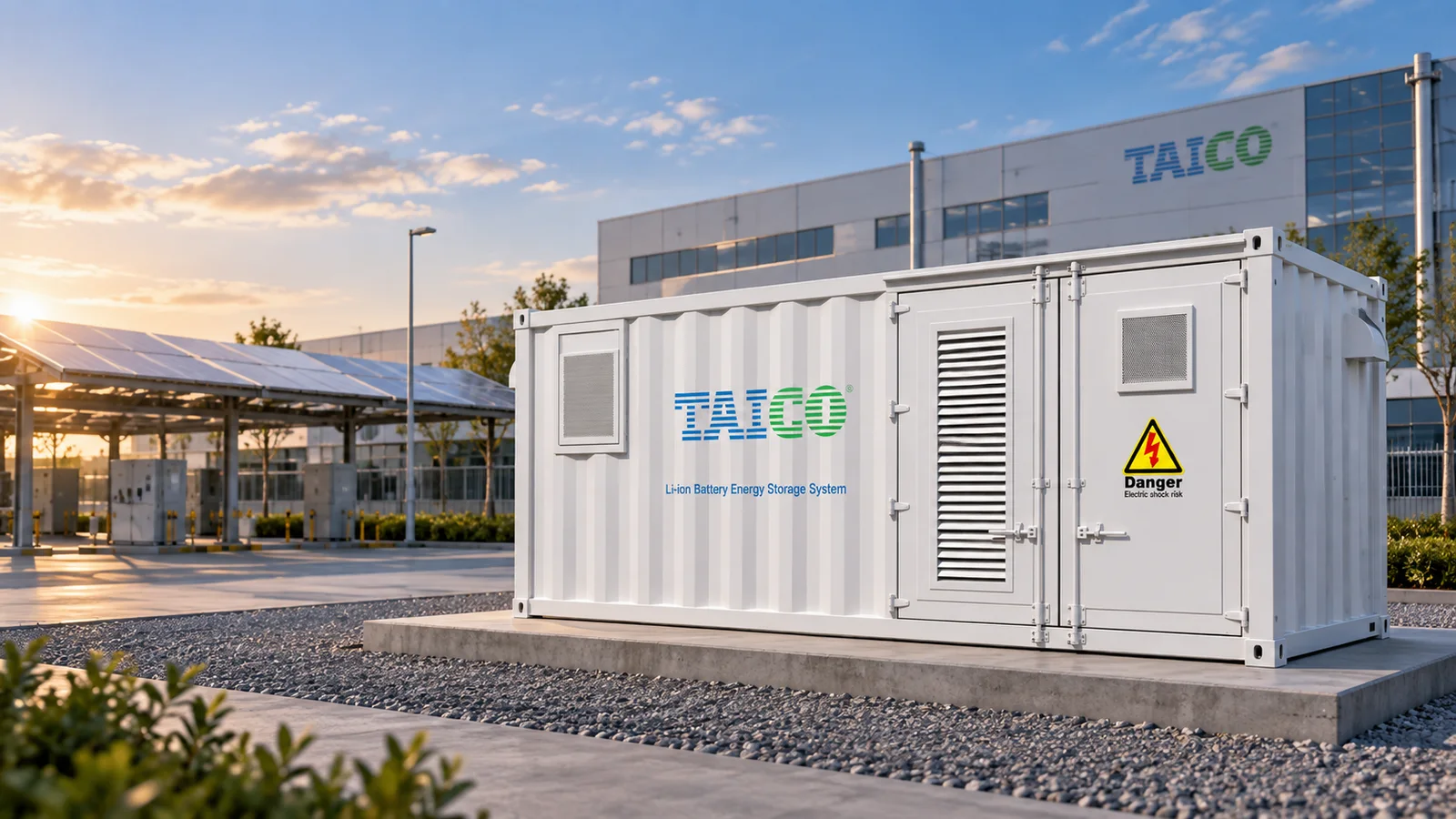

AI-generated illustrative application context, not a customer project.
System at a glance
The published TKS E-Cube A1500 platform
Hybrid ESS container available as 500 kW / 1543 kWh (20 ft) or 1000 kW / 1543 kWh (40 ft) configurations.
- Capacity
- 1543 kWh
- Rated power
- 500 kW
- Protection
- IP54
- Catalog
- V1.9 / P5
Use cases
- Industrial and commercial energy storage
- Microgrids
- Off-grid power supply
Capabilities
- +AC/DC integration with simple on-site grid and load connection
- +Standard on/off-grid intelligent switching
- +Isolated transformer configuration
Deployment context
Designed for deployment at scale
From an individual product platform to a coordinated site layout, system quantity and electrical architecture remain project-specific.
Product image gallery
Container system views

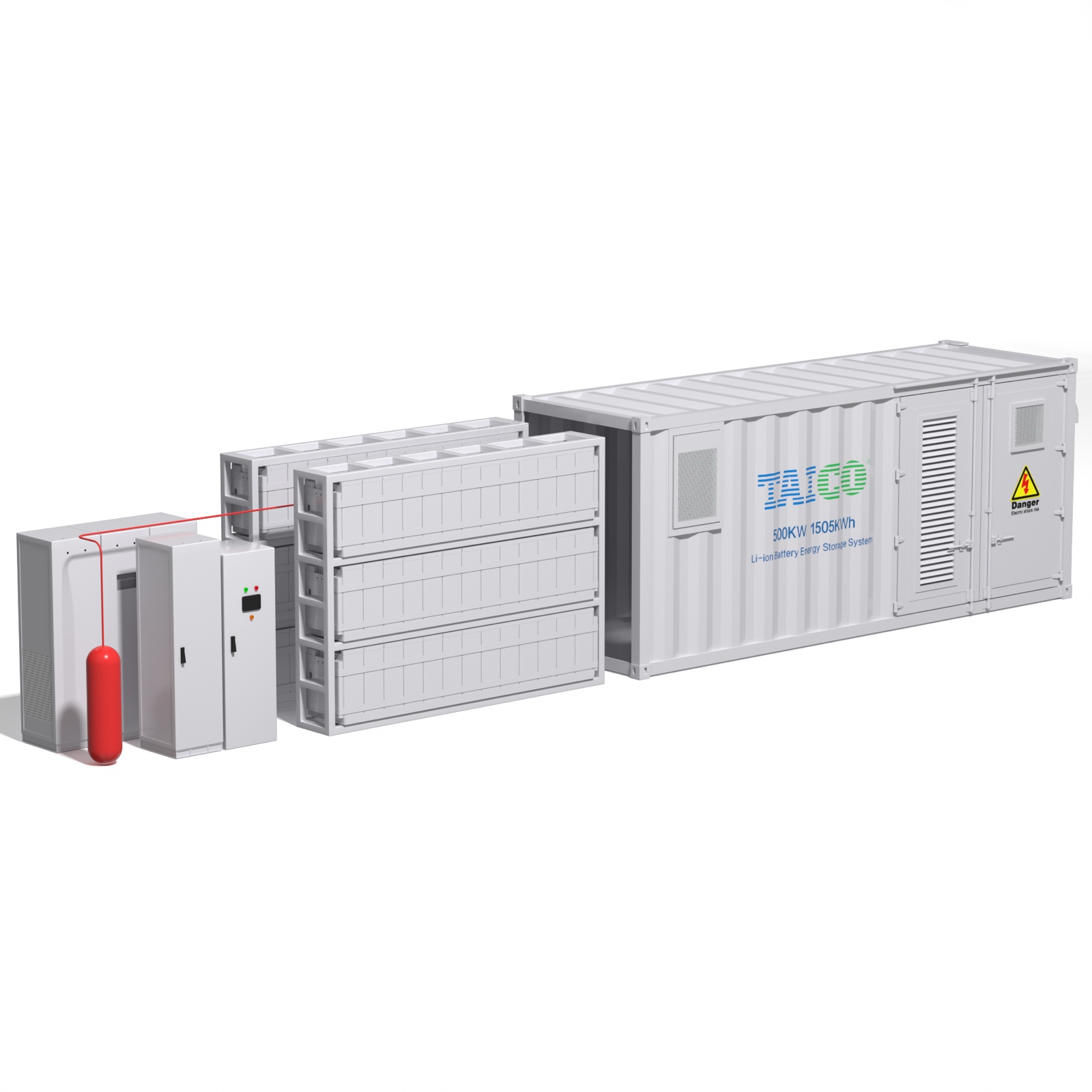

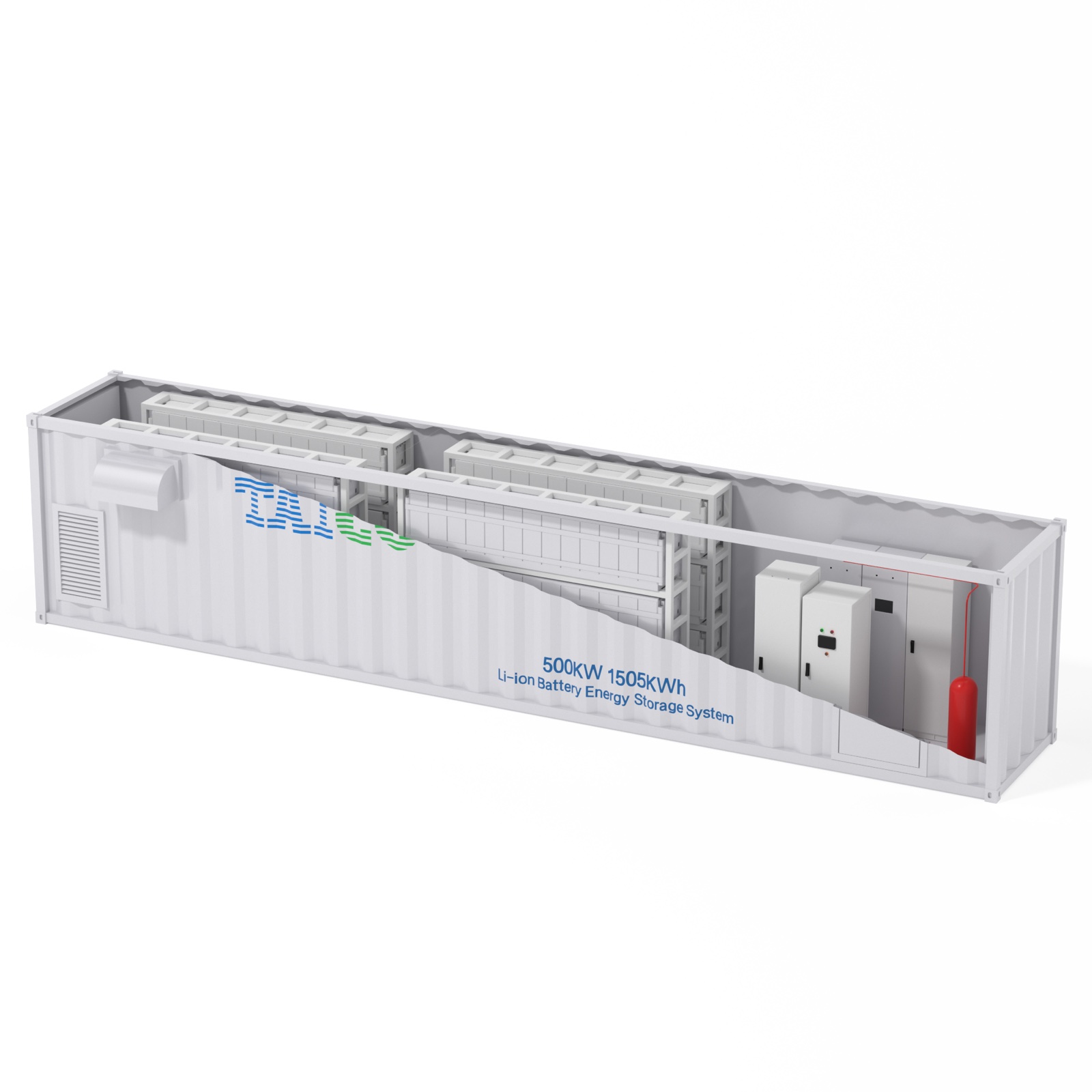

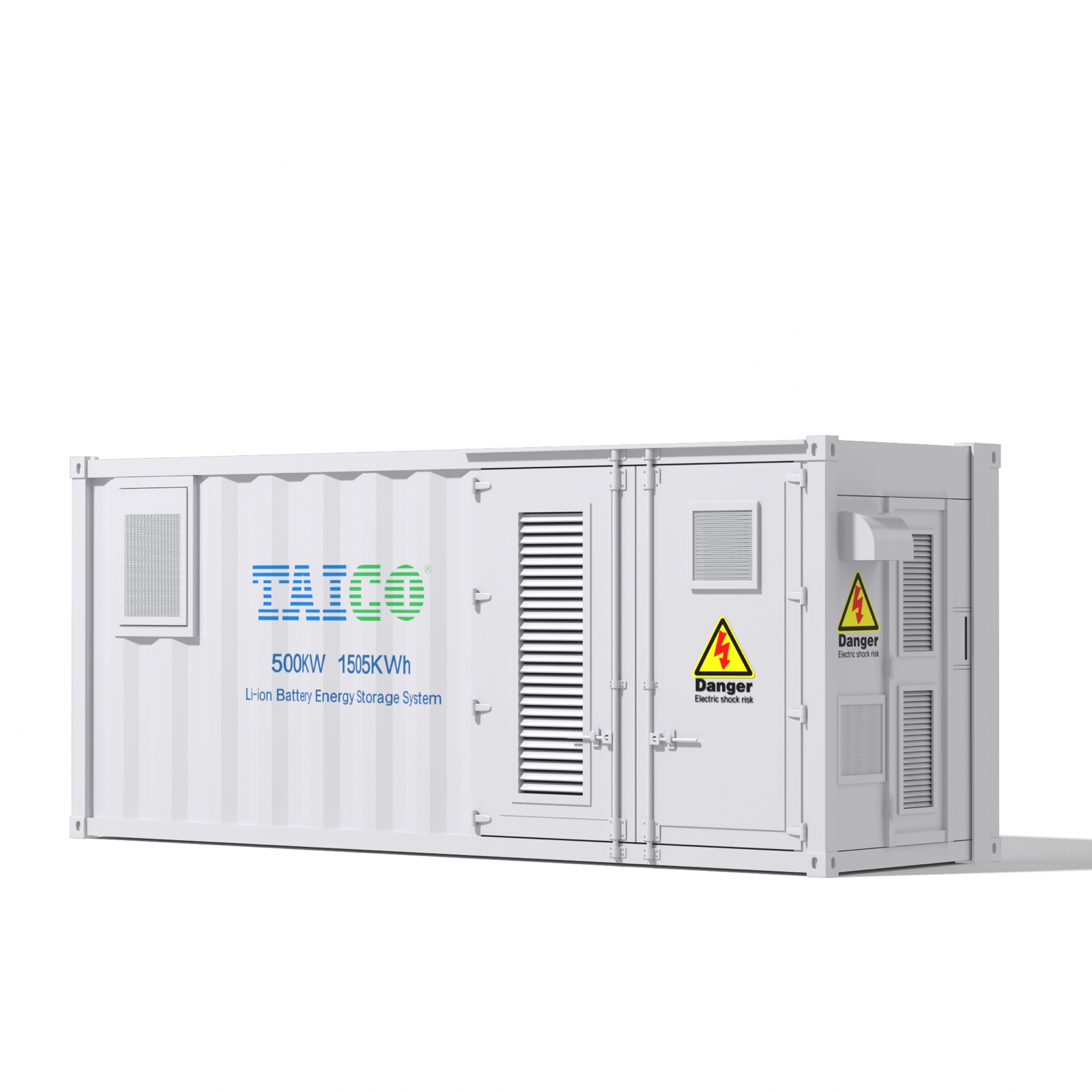

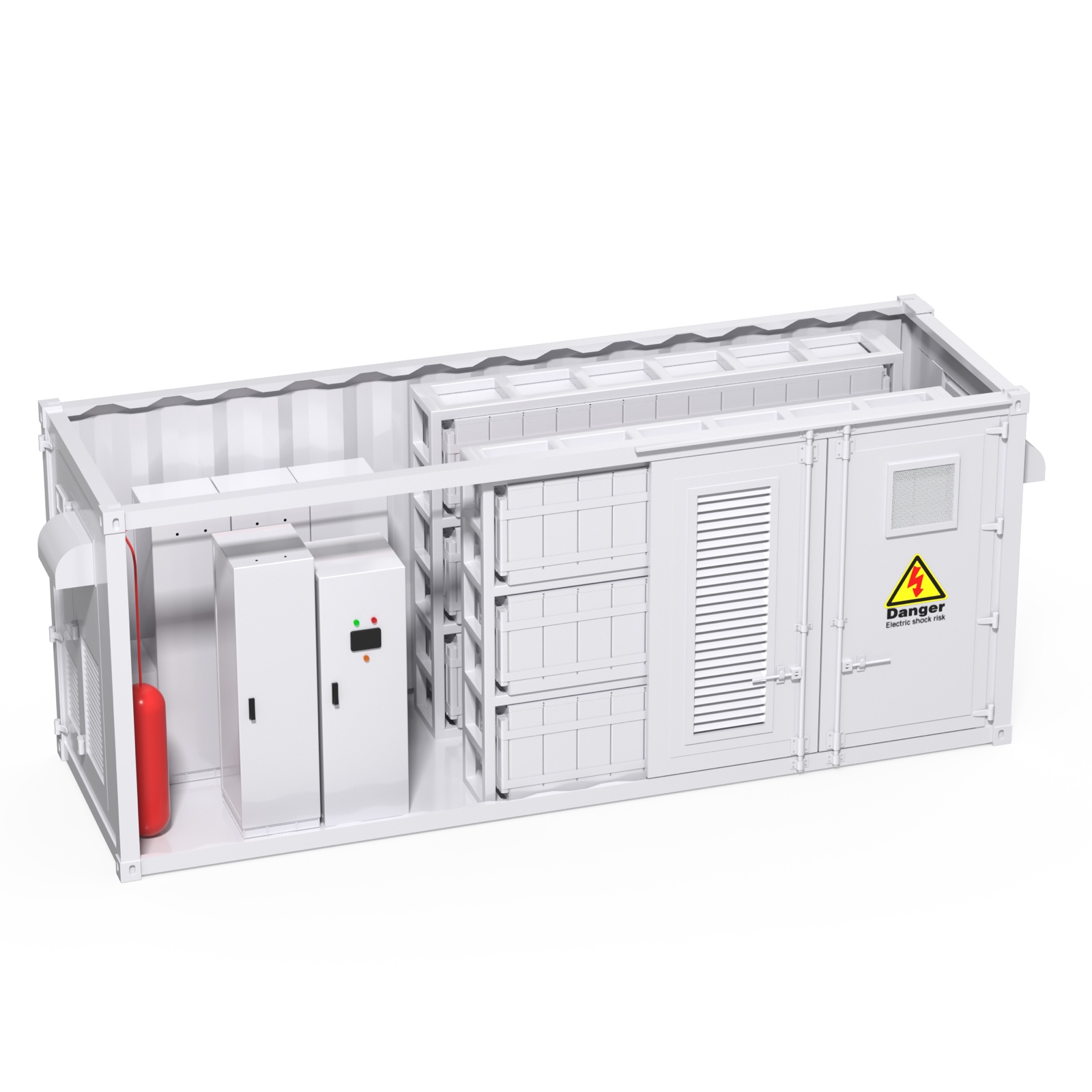

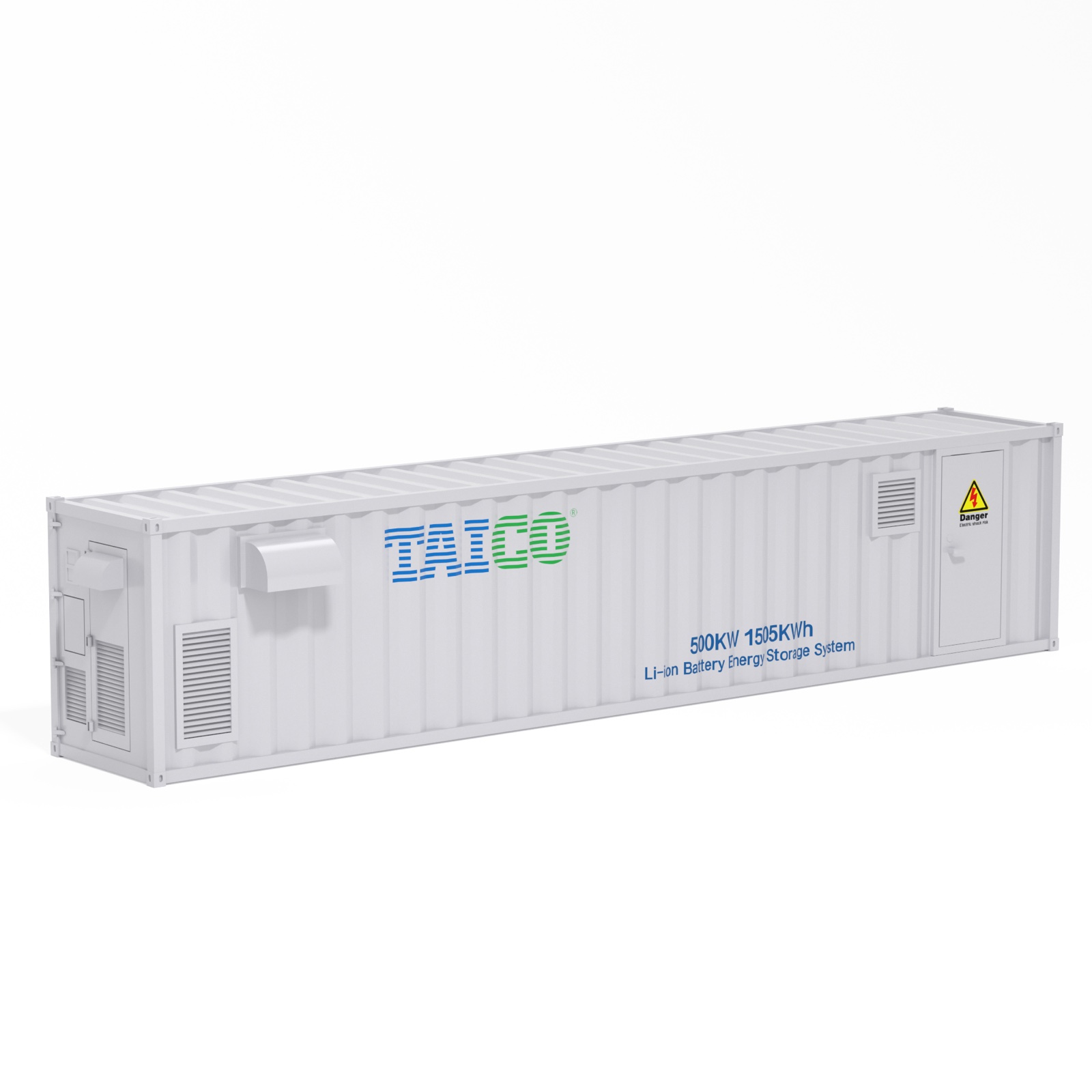

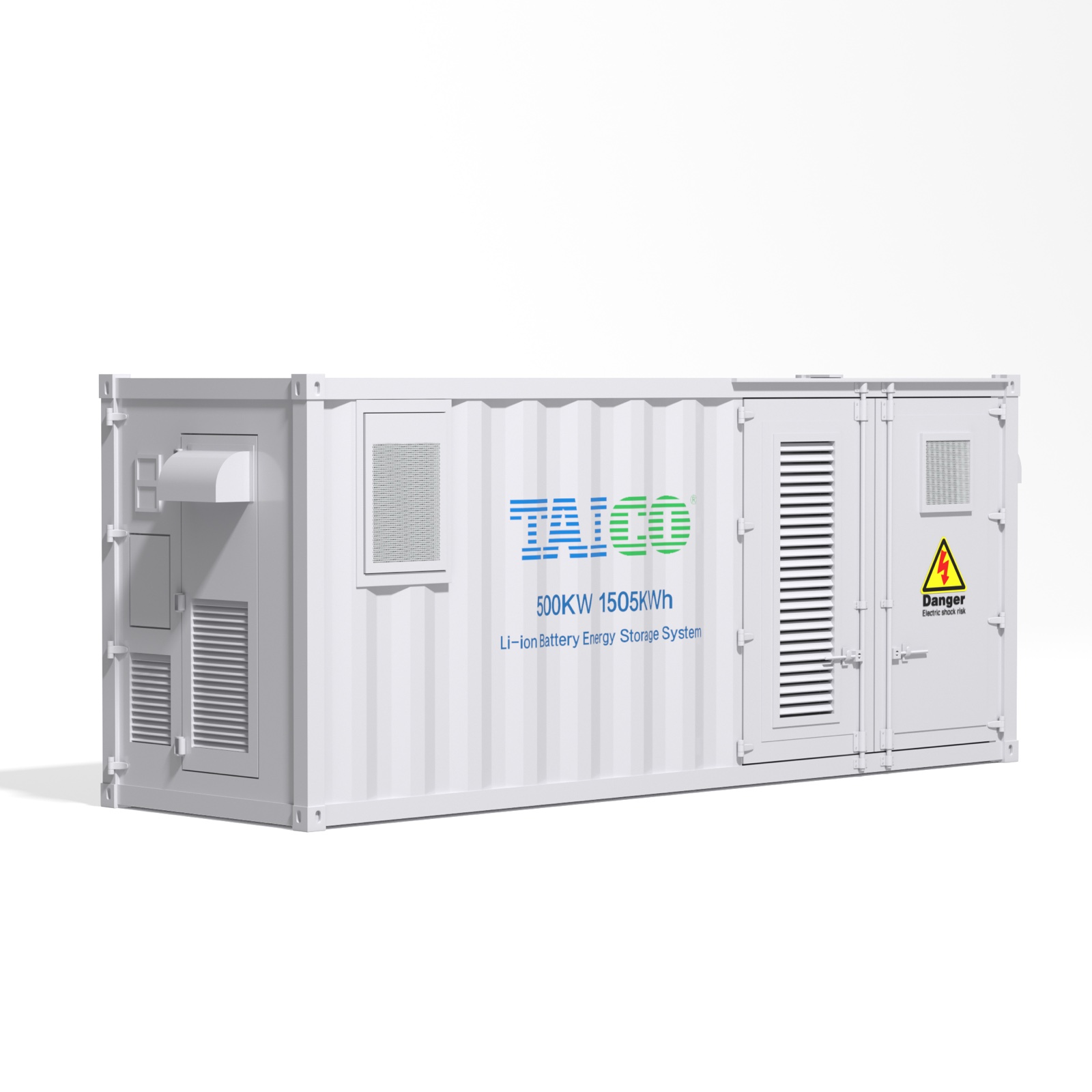

Supplier-provided views of the TKS E-Cube A1500 enclosure and internal system arrangement.
Catalog specification
Technical details
Published from TAICO C&I ESS Brochure V1.9, page 5.
| Battery capacity | 1543 kWh |
|---|---|
| Rated / output power | 500 kW |
| Rated voltage | AC 400 V |
| Cell type | LFP 314 Ah |
| Cycle life / duty | Catalog pack 16.077 kWh / 1P16S · ≤0.5C |
| Working temperature | −30 °C to 55 °C (derating over 40 °C) |
| 20 ft configuration | 500 kW / 1543 kWh |
| 40 ft configuration | 1000 kW / 1543 kWh |
| Battery capacity / packs | 1543 kWh / 6×16 |
| Max. PV input power (20 ft) | 12 × 120 kW |
| Max. PV input power (40 ft) | 12 × 120 kW |
| Hybrid switching time | <20 ms |
| Rated frequency | 50/60 Hz |
| Cooling | Smart air cooling |
| Size | 6058 × 2438 × 2896 mm (20 ft) / 12192 × 2438 × 2896 mm (40 ft) |
| Weight | <20 t (20 ft) / <21 t (40 ft) |
| Protection level | IP54 |
Compatibility reference
Battery and inverter ecosystem
A published reference of TAICO battery-cell partners and compatible inverter brands. Final cell, inverter, and certification scope must be confirmed for each project.
Explore by challenge
Peak Shaving & Demand Charge Reduction
Shift industrial and commercial load away from expensive peak windows.
Microgrid & Off-Grid Power
Combine PV, storage, and controllable loads into one resilient power island.
Data Center Energy Storage
Improve power reliability while capturing peak-shaving economics.
